Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity
Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity
Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Büyük resim :  Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Ürün ayrıntıları:
Menşe yeri: Zhejiang, Çin
Marka adı: Hydrotu
Sertifika: CE
Model numarası: Turgo tüpü, Turgo Su Türbini
Belge: Enquiry sheet.doc
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Tahta Sandık (İhracat Standart Paketi)
Teslim süresi: Pazarlık edilebilir
Ödeme koşulları: L/C,T/T
İletişim

Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Açıklama
Turbin tipi: Yatay Turgo türbini Yolluk malzemesi: Döküm Paslanmaz çelik
su kafası: 80m-300m Kapasite: 100KW-2000KW
Vurgulamak:

Stainless Steel Runner Turgo Hydro Turbine

,

80m-300m Water Head Turgo Water Turbine

,

100KW-2000KW Capacity Impulse Turbine

Small Impulse Turbine Turgo Hydro Turbine
Turgo Water Turbine for medium to high water head hydropower projects
Product Overview
Small Impulse Hydro Turbine Turgo Turbine with Stainless Steel Runner designed for 100m water head applications. The Turgo turbine is an impulse turbine suitable for heads ranging from 50m to 250m.
Operating Principle
Water from the penstock is transformed into a high-speed jet through the nozzle. The water is directed at a 22.5° angle to one side of the runner and discharges at the other side. The dynamic force of the water flow causes the runner to rotate rapidly.
Key Components
  • Rotating Assembly: Includes runner, main shaft, flywheel, and water deflector
  • Runner: The principle component featuring three-dimensional camber vanes, hub, and outer ring to strengthen the runner and reduce wind loss
  • Power Transmission: Plane key system between runner and main shaft with elastic coupling
  • Bearing System: SKF Ball Bearing for reliable operation
Technical Specifications
Parameter Specification
Type Horizontal Turgo turbine with one/two nozzles
Water Head 50m to 250m
Installation Capacity 100KW to 2000KW
Runner Material Stainless Steel (0Cr13Ni4Mo)
Generator Type Synchronous Generator
Auxiliary Equipment Governor, Inlet Valve, Unit Side Panel, Excitation System
Application Parameters
  • Water head: 50m - 250m
  • Capacity: 100KW - 2000KW
  • Runner diameter: Below 1.5m
  • Frequency: 50Hz or 60Hz
  • Generator Output: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase
Key Advantages
  • High specific speed and flow capacity
  • Even efficiency curve across operating range
  • Simple construction and easy installation
  • Reliable operation with minimal maintenance
  • Cost-effective solution for medium-high head applications
Inquiry Requirements
For detailed quotations, please provide key parameters including net head, flow discharge, unit number, frequency, and voltage requirements.
Product Images

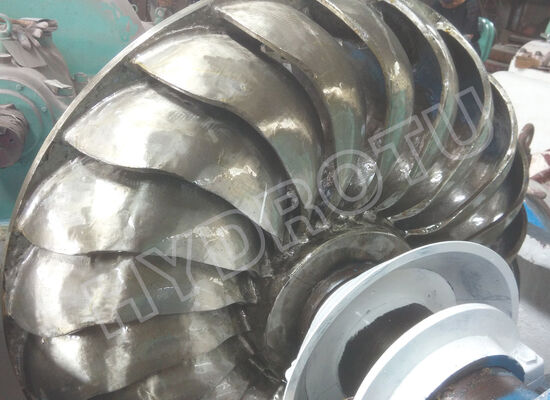

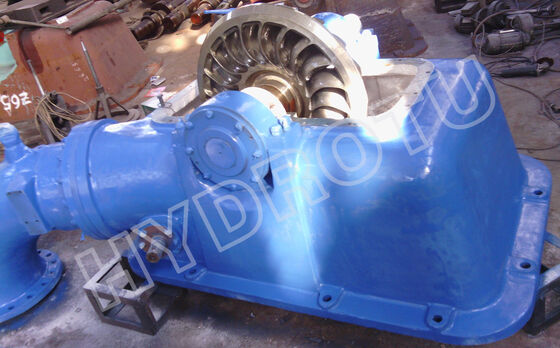

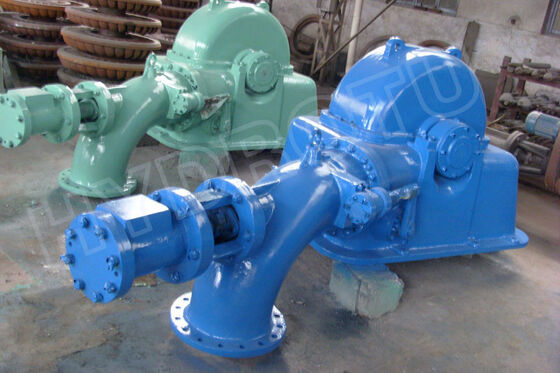

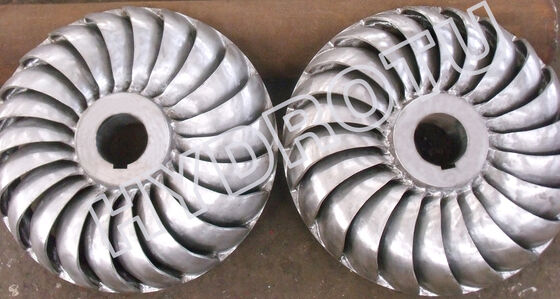

Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity 0 Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity 1 Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity 2
